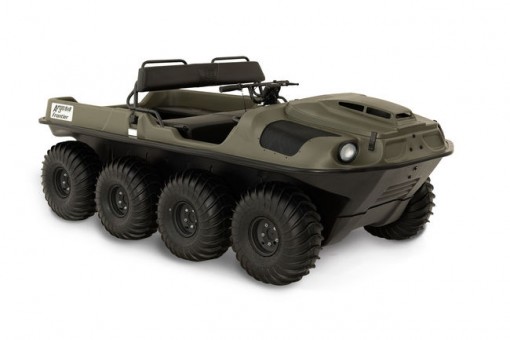

This model combines a 23 hp carburetor-equipped Vanguard V-twin with the option of ST gearing for a top speed of 22 mph, or HT gearing that drops top speed down to 19 mph in exchange for more torque. The 650 can carry up to 830 lbs. and 6 people on land and up to 730 lbs. and four people on water. This model tows up to 1,200 lbs.
| HORSEPOWER | 23HP |
| CYLINDER | V-TWIN |
| FUEL SYSTEM | CARB |
| COOLING | FAN COOLED |
| ALTERNATOR OUTPUT (MAX) | 20 AMPS |
| SERVICE BRAKES | MECHANICAL |
| STEERING BRAKES | HYDRAULIC |
| BRAKE COOLING FAN | STANDARD |
| TRANSMISSION | CLASSIC |
| TRANSMISSION OPTION | ST OR HT |
| HD DRIVE BELT | —– |
| FULL SKID PLATE | STANDARD |
| BRUSHGUARD | —– |
| WINCH | —– |
| FRONT RACK | —– |
| BILGE PUMP | STANDARD |
| LOAD CAPACITY – LAND | 830 LB. (376 KG) |
| LOAD CAPACITY – WATER | 730 LB. (331 KG) |
| TOWING CAPACITY | 1,200 LB. (544 KG) |
| SEATING CAPACITY – LAND | 6 |
| SEATING CAPACITY – WATER | 4 |
| FUEL CAPACITY | 7.1 US GALLONS (27 LITRES) |
| SPEED – LAND (ST TRANSMISSION) | 22 MPH (35 KM/H) |
| SPEED – LAND (HT TRANSMISSION) | 19 MPH (30 KM/H) |
| SPEED – WATER | 3 MPH (5 KM/H) |
| WEIGHT | 1220 LB. (554 KG) |
| LENGTH | 102 IN (2,591 MM) |
| WIDTH | 58 IN (1,473 MM) |
| HEIGHT | 52.5 IN (1,334 MM) |
| AXLE BEARING EXTENSIONS | N/A |
| ENTRY STEP | —– |
| TIRES | ARGO AT189 24X10-8 |
| RIMS | STEEL OFF-SET |
| GROUND PRESSURE (TIRES) | 1.7 PSI (13.5 KPA) |
| GROUND PRESSURE (TRACKS) | 0.67 PSI (4.6 KPA) |
| GROUND CLEARANCE (TIRES) | 9.5 IN (241 MM) |
| GROUND CLEARANCE (TRACKS) | 10.5 IN (267 MM) |
| WARRANTY | 1 YEAR |
| COLORS | GREEN |
