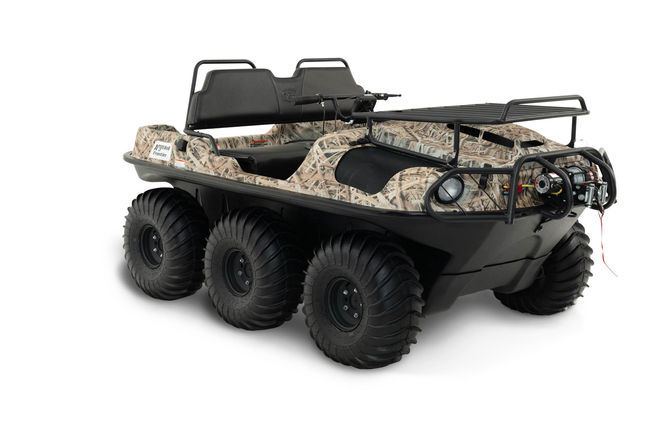

2019 Frontier 700 Scout 6×6

2019 Frontier 700 Scout 6×6

Argo’s smallest hunting model is available in Mossy Oak’s Breakup Country and Shadow Grass camo patterns. Standard equipment includes a 3,500 lb. Warn winch, a brush guard and a front cargo rack. This XTV can carry up to 560 lbs. and four people on land, and up to 360 lbs. and two people on water. Towing capacity is 1,200 lbs. A 23 hp fuel-injected Vanguard V-twin provides easy starting in all weather conditions, while the classic transmission with ST gearing lets the 700 reach 22 mph on land and 3 mph in water.

2019 Frontier 700 Scout 6×6 Overview

  • 23HP V-Twin EFI Fan Cooled Engine
  • Classic High Torque or Standard Transmission
  • Steel Offset Rims with 24” tires
  • 3500 lb. winch with steel cable
  • Brushguard
  • Front Rack
  • Tail Lights
  • Breakup Country Camo or Shadow Grass Blades Camo

2019 Frontier 700 Scout 6×6 Colors

swatch-breakup swatch-shadowgrass

2019 Frontier 700 Scout 6×6 Specs

HORSEPOWER 23HP
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING FAN COOLED
ALTERNATOR OUTPUT (MAX) 20 AMPS
SERVICE BRAKES MECHANICAL
STEERING BRAKES HYDRAULIC
BRAKE COOLING FAN —–
TRANSMISSION CLASSIC
TRANSMISSION OPTION ST
HD DRIVE BELT —–
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
WINCH 3,500 LB. WARN WINCH
FRONT RACK STANDARD
BILGE PUMP STANDARD
LOAD CAPACITY – LAND 560 LB. (254 KG) W/ MAX 140 LB. (64 KG) IN REAR
LOAD CAPACITY – WATER 360 LB. (163 KG)
TOWING CAPACITY 1,200 LB. (544 KG)
SEATING CAPACITY – LAND 4
SEATING CAPACITY – WATER 2
FUEL CAPACITY 7.1 US GALLONS (27 LITRES)
SPEED – LAND (ST TRANSMISSION) 22 MPH (35 KM/H)
SPEED – LAND (HT TRANSMISSION) 19 MPH (30 KM/H)
SPEED – WATER 3 MPH (5 KM/H)
WEIGHT 990 LB. (450 KG)
LENGTH 95 IN (2,413 MM)
WIDTH 58 IN (1,473 MM)
HEIGHT 45.8 IN (1,163 MM)
AXLE BEARING EXTENSIONS STANDARD
ENTRY STEP —–
TIRES ARGO AT189 24X10-8
RIMS STEEL OFF-SET
GROUND PRESSURE (TIRES) 1.7 PSI (13.5 KPA)
GROUND PRESSURE (TRACKS) 0.67 PSI (4.6 KPA)
GROUND CLEARANCE (TIRES) 9.5 IN (241 MM)
GROUND CLEARANCE (TRACKS) 10.5 IN (267 MM)
WARRANTY 1 YEAR
COLORS BREAKUP COUNTRY CAMO/SHADOW GRASS CAMO

2019 Frontier 700 Scout 6×6 Downloads

2019 Argo Frontier Series Brochure 1.02 MB 14 downloads

...
