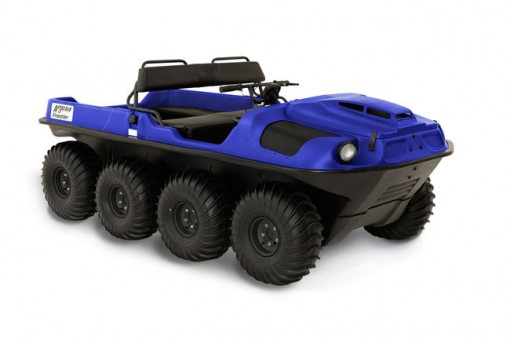

2019 Frontier 700 8×8

2019 Frontier 700 8×8

The 700 combines a 23 hp EFI-equipped Vanguard V-twin with the option of ST gearing for a top speed of 22 mph, or HT gearing that drops top speed to 19 mph in exchange for more torque. This XTV can carry up to 830 lbs. and six people on land and up to 730 lbs. and four people on water. Towing capacity is 1,200 lbs. Available colors include green, black, blue and yellow.

2019 Frontier 700 8×8 Overview

  • 26HP V-Twin EFI Fan Cooled Engine
  • Classic High Torque or Standard Torque Transmission
  • Steel Offset Rims with 24” tires
  • Colors: Green, Black, Yellow or Blue

2019 Frontier 700 8×8 Colors

swatch-black swatch-blue swatch-yellow swatch-tundra-green

2019 Frontier 700 8×8 Specs

HORSEPOWER 23HP
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING FAN COOLED
ALTERNATOR OUTPUT (MAX) 20 AMPS
SERVICE BRAKES MECHANICAL
STEERING BRAKES HYDRAULIC
BRAKE COOLING FAN STANDARD
TRANSMISSION CLASSIC
TRANSMISSION OPTION ST OR HT
HD DRIVE BELT —–
FULL SKID PLATE STANDARD
BRUSHGUARD —–
WINCH —–
FRONT RACK —–
BILGE PUMP STANDARD
LOAD CAPACITY – LAND 830 LB. (376 KG)
LOAD CAPACITY – WATER 730 LB. (331 KG)
TOWING CAPACITY 1,200 LB. (544 KG)
SEATING CAPACITY – LAND 6
SEATING CAPACITY – WATER 4
FUEL CAPACITY 7.1 US GALLONS (27 LITRES)
SPEED – LAND (ST TRANSMISSION) 22 MPH (35 KM/H)
SPEED – LAND (HT TRANSMISSION) 19 MPH (30 KM/H)
SPEED – WATER 3 MPH (5 KM/H)
WEIGHT 1220 LB. (554 KG)
LENGTH 102 IN (2,591 MM)
WIDTH 58 IN (1,473 MM)
HEIGHT 52.5 IN (1,334 MM)
AXLE BEARING EXTENSIONS STANDARD
ENTRY STEP —–
TIRES ARGO AT189 24X10-8
RIMS STEEL OFF-SET
GROUND PRESSURE (TIRES) 1.7 PSI (13.5 KPA)
GROUND PRESSURE (TRACKS) 0.67 PSI (4.6 KPA)
GROUND CLEARANCE (TIRES) 9.5 IN (241 MM)
GROUND CLEARANCE (TRACKS) 10.5 IN (267 MM)
WARRANTY 1 YEAR
COLORS GREEN/BLACK/BLUE/YELLOW

2019 Frontier 700 8×8 Downloads

2019 Argo Frontier Series Brochure 1.02 MB 14 downloads

...
