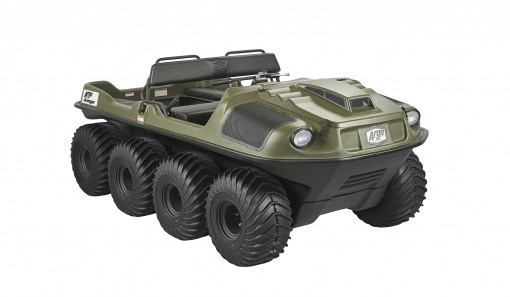

Avenger 8×8 ST

Avenger 8×8 ST

The ARGO Avenger 8×8 XTVs are where comfort meets performance. The Avenger 8×8 ST can seat 6 on land and 4 on the water while carrying up to 1,070 lb. Bring your friends and all your gear — the rear cargo area has plenty of room for everything you need. Equipped with a liquid cooled 30 HP Kohler engine and HDPE skid plate, the Avenger 8×8 ST can power through and slide over anything you throw in front of it.

Avenger 8×8 ST Overview

• 30HP Kohler Liquid Cooled Engine
• 25” Steel Off-Set Rims
• Skid Plate
• Bearing Extensions
• Bilge Pump
• Entry Step
• Transmission Options: Admiral – HT (34-200-8.1) and Admiral – STD (34-200-6.2)

Avenger 8×8 ST Colors


Avenger 8×8 ST Features


Avenger 8×8 ST Specs

Engine Kohler Aegis ELH775
Engine Warranty 3 Year
Type 4 cycle OHV gasoline-powered engine features electronic fuel injection (EFI), full pressure lubrication and V-twin cylinders
Horsepower* 30
Displacement 747cc
Cooling Liquid Cooled
Alternator Optional
Service Brakes Hydraulic
Steering Brakes Hydraulic
Brake Cooling Fan Optional
Steering One-piece ergonomic handlebar steering control with mounted brake lever. For safety and ease of handling, the ARGO steering transmission provides continuous torque to all axles.
Controls Right-hand twist grip throttle. Light switch and ignition switch.
Clutch Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
Transmission ADMIRAL triple differential steering transmission with independent  High and Low range; Forward, Neutral, Reverse.
Transmission Options STD or HT
Drive System Chains drive machined sprockets. 1 3/8″ diameter axles with triple sealed greaseable outer bearings.
Final Drive RC50-2 and RC60 roller chain drive to all 8 axles
HD Drive Belt Optional
Frame Formed steel channel construction, welded for high strength and durability. Polyester powder coated for lasting protection.
Body Vacuum formed High Molecular Weight Polyethylene
Full Skid Plate Standard
Brushguard Optional
Winch Optional
Bilge Pump Standard
Load Capacity – On Land 1070 lb. /485 kg total
Load Capacity – Rear Compartment
Load Capacity – On Water 920 lb. / 417 kg total
Towing Capacity 1800 lb. / 816 kg
Seating Capacity 6 persons on land, 4 persons on water
Fuel Capacity 7.1 US Gallons (27 litres) See through polyethylene fuel tank. 8 hours of operation.
Speed (on land) 20 mph / 32 km per hour
Speed (on water) 3 mph / 5 km per hour
Shipping Weight 1330 lb. /603 kg
Axle Bearing Extensions Standard
Instrumentation LCD Digital Gauge Cluster, Speedometer, Odometer, Voltmeter, Hour Meter, Tachometer, Low Oil Pressure and Parking Brake Reminder Lights, Check Engine Light
Entry Step Standard
Tires ARGO AT189 25 x 12.00-9NHS
Ground Pressure 2.5 psi (17.2 kPa) using tires
Ground Clearance Tires 9.5 inches – 240 mm
Ground Clearance Tracks 10.5 inches – 265 mm
Operating Conditions All weather,all-terrain,-40°C to +40°C

*subject to change without notice
